Induction electric furnaces
The research-and-production enterprise " the Electroplasma equipment and systems " develops induction electric furnaces and the equipment for:

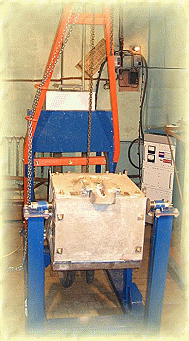

The basic specifications and characteristics of the electric furnace:
Induction an electric furnace - mixer
- melt of steel, cast iron and nonferrous metals
- melt of refractory materials (up to 3000 C)
- devices for heating under training
- complex development of equipment for the induction equipment
- calculation of parameters of heating
- development of technology
- system engineering of control by consumed loading of active capacity
- complex (difficult) algorithms of control of properties direct-hardening products
- induction systems of heating of water, oils, other fluid environments
- complex control systems and measurements of frequency, a current, capacity, phases and other parameters
- high-frequency heating of a wire, training and holiday, having heated under isolation
- completion and modernization of existing installations, optimization of technology etc.
- designing and a complete set of shops and sites with the process equipment (hardening, foundry etc.)
The basic specifications and characteristics of the electric furnace:
Capacity of capsule (for copper):
|
30 kg |
| Maximal temperature of liquid melt: | |
| at melt of copper: | 1200 С |
|
at melt of steel:
|
1650 С |
|
Rated power of the electric furnace:
|
40 kw |
| Nominal frequency of a current of a circuit: | 8,0 kilohertz |
|
Frequency of a current of induction coil:
|
8,0 - 15,0 kilohertz |
| Nominal charge of water: | 17 litre in the minute |
|
Weight of the electric furnace:
|
0,5 ton |
| Pressure of water in the hydrocircuit of cooling of the furnace: | |
| maximal: | 0,6 megapascal |
|
nominal:
|
0,42 megapascal |
Induction an electric furnace - mixer
Induction vacuum compressive a furnace for work with refractory (up to 3500 С) materials, with the built - in circuit of electroslag heating metals.
It is in addition supplied with exact electronic system of measurement of the capacity selected in a fusing material.
Induction an electric furnace - mixer it is intended for melt of refractory metals and has the following basic characteristics:
- Working temperature of liquid melt: up to 3500 С.
- Working pressure: up to 1 megapascal.
- Working frequency: 66 kilohertz.
- Capacity: 100 kw.
The frequency shifter
for induction heating, melt and
thermal processing of materials
for induction heating, melt and
thermal processing of materials
A modelling line of converters of frequency shifters from 5 up to 100 kw. The intellectual control system of the frequency shifter provides both the given algorithm, and heating on the basis characteristics of a material.
Efficiency: |
more than 95% |
|
Frequency: |
0 … 66 kilohertz |
|
Degree of protection: |
IP54 |
|
Small weight and dimensions |
+ |
|
Universality |
+ |
|
Modularity |
+ |
|
Modern electronic components
|
+ |
Induction vacuum compressive furnace
for melt of metals of low density
for melt of metals of low density
Characteristics:
 |
Nominal capacity:
|
120 litres |
|
|
Capacity of the power supply:
|
60 kw |
|
|
Capacity of the electric furnace:
|
65 kw |
|
|
Frequency of a current of a circuit of induction coil:
|
50 hertz |
|
|
Rated voltage of a circuit:
|
300 V |
|
|
Rated current of a regulator:
|
200 А |
|
|
Pressure in the chamber of the electric furnace:
|
from-0,006 up to +0,07 megapascal |
|
|
the Charge of oil on cooling (at pressure 0,4 megapascal):
|
21 litres in the minute |
|
|
Diameter of induction coil:
|
475 mm |
|
|
the Nominal level of metal in the capsule:
|
720 мм |
|
|
Уровень болота:
|
330 mm |
|
|
Pressure of transformer oil in the hydrocircuit of cooling of the furnace: - Maximal: - Nominal:
|
0,6 megapascal 0,4 megapascal |
|
|
Temperature of oil cooling of induction coil: - On an input: - On an output, is not higher: |
+40 С +100 С |
